35000 BTU 3 Zone Mini Split AC Heating & cooling System 9k + 9k+ 18k BTU Wifi Air Conditioner 19 SEER2 208-230V AC Pre-Charged Condenser Heat Pump Include Copper Tube

<p style="text-align: start;">Type cooling&amp;heating</p><p style="text-align: start;">Power supply 208/230V~/60Hz/1P</p><p style="text-align: start;">Model TMH36HEI2NAM5U24</p><p style="text-align: start;">Rated cooling capacity 95℉/35℃ 35000</p><p style="text-align: start;">Heating Rated Capacity 36000</p><p style="text-align: start;">22400</p><p style="text-align: start;">5F Heating capacity 25400</p><p style="text-align: start;">70.6%</p><p style="text-align: start;">SEER2 22.5</p><p style="text-align: start;">EER2 95℉/35℃ 12.0</p><p style="text-align: start;">HSPF2-4 9.5</p><p style="text-align: start;">HSPF2-5 8.2</p><p style="text-align: start;">COP2 47℉/8.33℃ 3.51</p><p style="text-align: start;">COP2 5℉/-15℃ 2.00</p><p style="text-align: start;">ENERGY STAR® Certified YES</p><p style="text-align: start;"><br></p><p style="text-align: start;">Heating Rated Capacity 37000</p><p style="text-align: start;">SEER2 19.0</p><p style="text-align: start;">EER2 95℉/35℃ 10.5</p><p style="text-align: start;">HSPF2-4 8.5</p><p style="text-align: start;">HSPF2-5 7.3</p><p style="text-align: start;">COP2 47℉/8.33℃ 3.21</p><p style="text-align: start;">COP2 5℉/-15℃ 1.80</p><p style="text-align: start;">ENERGY STAR® Certified NO</p><p style="text-align: start;">Rated Power Input 2930</p><p style="text-align: start;">2680</p><p style="text-align: start;">Rated Current 13.1</p><p style="text-align: start;">12.0</p><p style="text-align: start;">Min. Circuit Ampacity 22</p><p style="text-align: start;">Max. Ckt, Bkr (MOP) 35</p><p style="text-align: start;">Max. Fuse size 35</p><p style="text-align: start;">Connection Wiring</p><p style="text-align: start;">Compressor MTD280SKPC8LT8C</p><p style="text-align: start;">Dual-Rotary</p><p style="text-align: start;">HIGHLY</p><p style="text-align: start;">Fan motor DAYANG</p><p style="text-align: start;">DC</p><p style="text-align: start;">ZW511D000017</p><p style="text-align: start;">Outdoor Air Flow (H) 3200</p><p style="text-align: start;">1882</p><p style="text-align: start;">Noise level 65</p><p style="text-align: start;">Connecting Pipe 3/8</p><p style="text-align: start;">1/4</p><p style="text-align: start;">Throttling mode Capalliary/EEV. EEV</p><p style="text-align: start;">Refrigerant quantity 2800</p><p style="text-align: start;">98.84</p><p style="text-align: start;">Net dimensions (WxHxD) 1074×853×468</p><p style="text-align: start;">42.28x33.58x18.42</p><p style="text-align: start;">Net weight 66</p><p style="text-align: start;">145.5</p><p style="text-align: start;">Packing dimensions (WxHxD) 1135×970×530</p><p style="text-align: start;">44.68x38.18x20.86</p><p style="text-align: start;">Gross weight 77</p><p style="text-align: start;">169.8</p><p style="text-align: start;">Pre-Charge Length Total 98 (30)</p><p style="text-align: start;">Lineset Length (Max) - Total 263 (80)</p><p style="text-align: start;">Lineset Length (Max) - Each 98 (30)</p><p style="text-align: start;">Max. Line Set Height Difference Btwn. ODU &amp; Furthest IDU 49 (15)</p><p style="text-align: start;">Max. Line Set Height Difference Btwn. IDU 33 (10)</p><p style="text-align: start;">Additional Charge 0.11</p><p style="text-align: start;">0.22</p><p style="text-align: start;">Room temperature 16℃~30℃</p><p style="text-align: start;">-15~55℃/-25~30℃</p><p style="text-align: start;">Ambinet temperature 61~86</p><p style="text-align: start;">5~131/-13~86</p><p style="text-align: start;">Loading Capacity (ODU) 88/88/40</p><p style="text-align: start;">Free-match Technical Specifications Elite IDU</p><p style="text-align: start;">Model 9K</p><p style="text-align: start;">KFR-26G/YXHBp(E/6)(009394)</p><p style="text-align: start;">Z2U20102009394</p><p style="text-align: start;">Condensate Drain Connection Diameter OD Φ 16mm (5/16")</p><p style="text-align: start;">Fan motor Broad-Ocean</p><p style="text-align: start;">Y4S476B296</p><p style="text-align: start;">AC</p><p style="text-align: start;">Indoor airflow 580/460/400/340/260</p><p style="text-align: start;">342/270/235/200/152</p><p style="text-align: start;">Noise level (Turbo/High/Med./Low/Mute) 43/41/36/31/29</p><p style="text-align: start;">Connecting Pipe 3/8''</p><p style="text-align: start;">1/4''</p><p style="text-align: start;">Net dimensions (W x H x D) 811×292×203</p><p style="text-align: start;">31.92x11.49x7.99</p><p style="text-align: start;">Net weight 9.0</p><p style="text-align: start;">19.8</p><p style="text-align: start;"><br></p><p style="text-align: start;">18K</p><p style="text-align: start;">KFR-52G/YXHBp(E/6)(009430)</p><p style="text-align: start;">Z2U20102009430</p><p style="text-align: start;">cooling&amp;heating</p><p style="text-align: start;">208/230V~/60Hz/1P</p><p style="text-align: start;">OD Φ 16mm (5/16")</p><p style="text-align: start;">Broad-Ocean</p><p style="text-align: start;">ZWK465B00501</p><p style="text-align: start;">DC</p><p style="text-align: start;">1050/980/870/700/650</p><p style="text-align: start;">617/575/511/411/382</p><p style="text-align: start;">49/47/42/37/32</p>

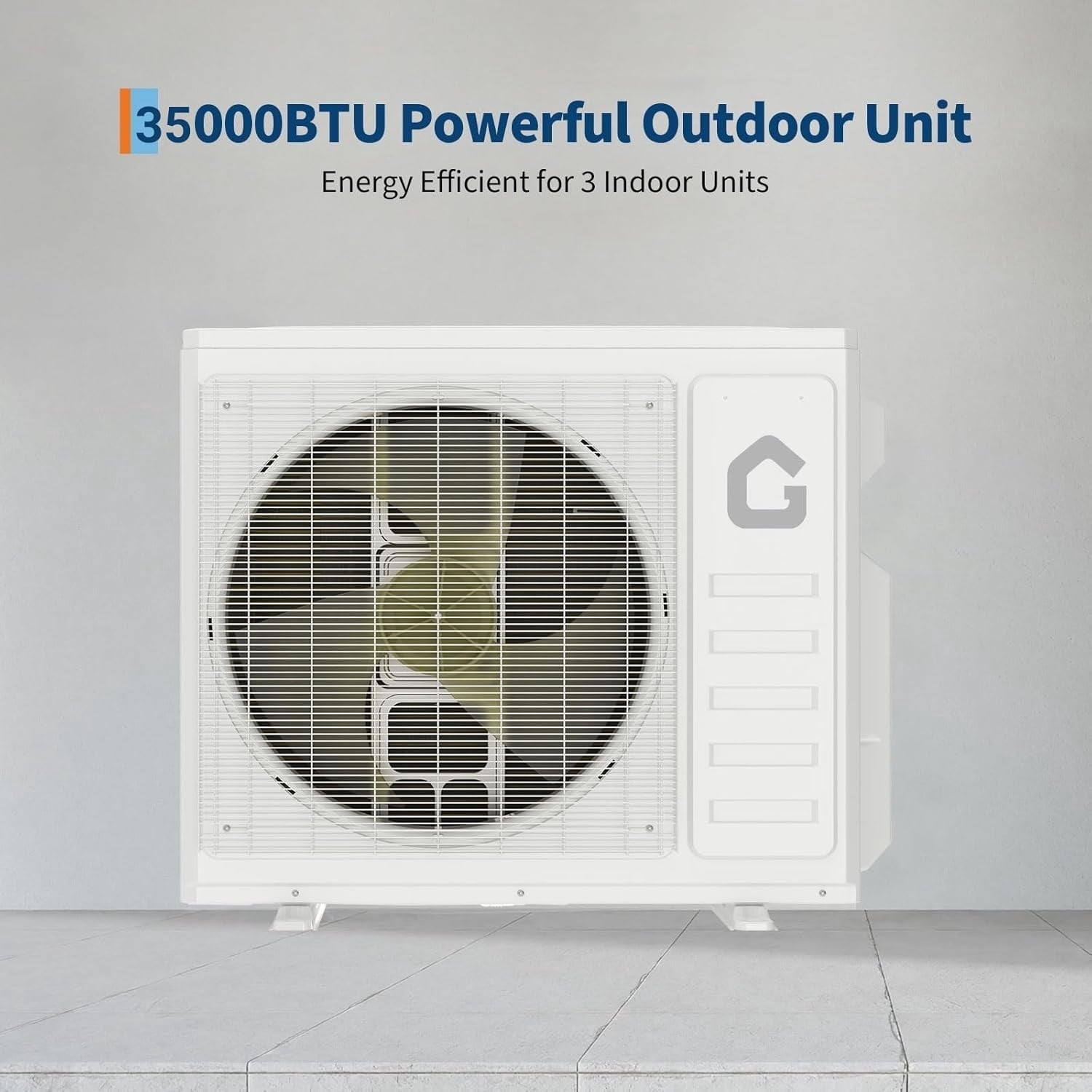

• 3 Zone Mini Split AC/Heating System boasts a 35000 BTU outdoor unit paired with 9000+9000+18000 BTU indoor units, covering up to 1500 Sq.Ft total. Each zone (bedrooms, home office, living room) gets independent temperature adjustment—no more compromising on comfort. 3 zone mini split design eliminates "too hot/too cold" spots, fitting large homes or multi-room apartments better than dual-zone models.
• Works seamlessly from -13°F low-temperature heating to 127.4°F high-temperature cooling—handles frigid winters and scorching summers with ease. Built-in intelligent auto-defrost and forced defrost dual protection prevent outdoor unit frost buildup. Low-temperature cooling (-15℃) meets special needs like wine cellars or storage rooms, while high MSP Duct ensures stable airflow even in large spaces.

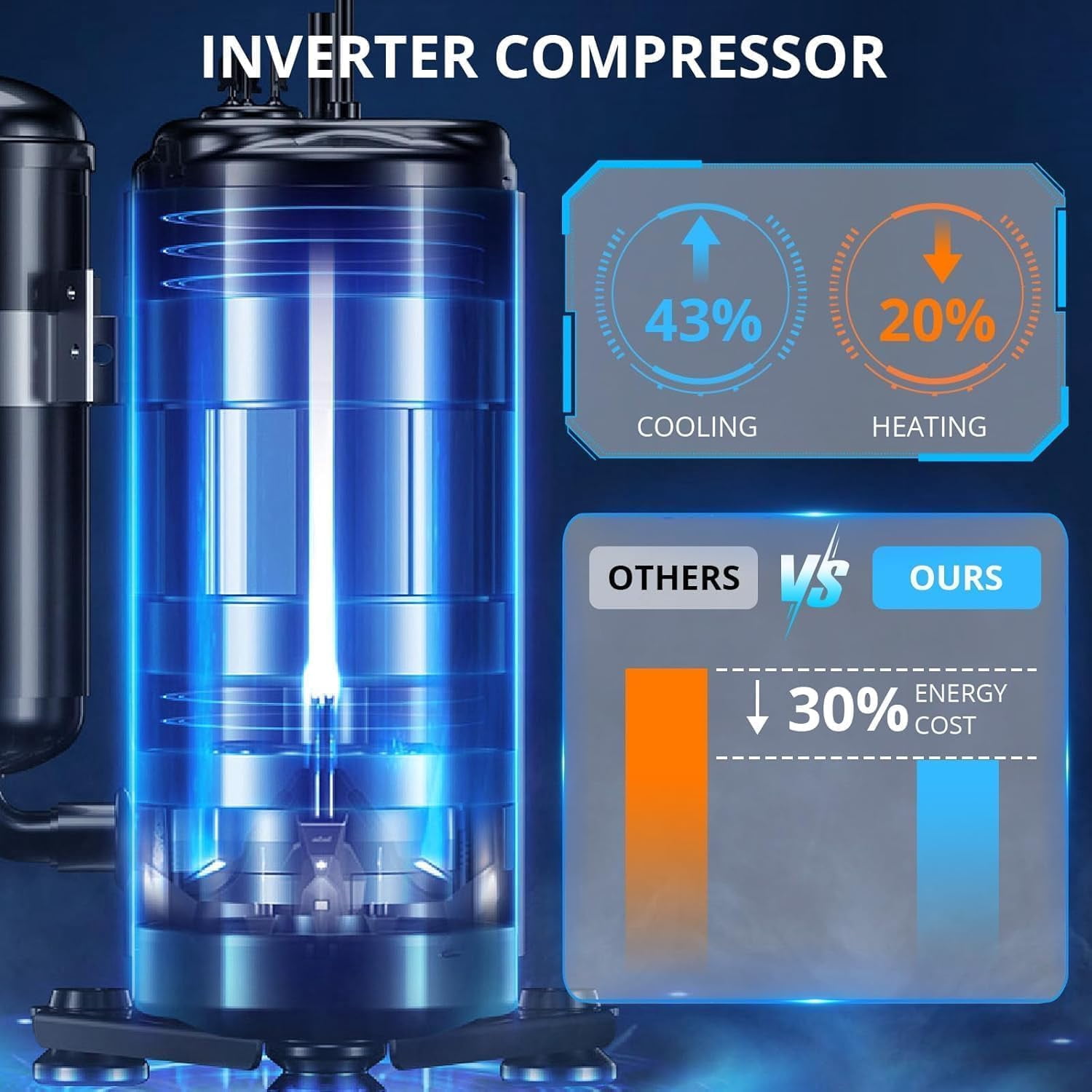

• 19 SEER2 high-efficiency rating slashes annual electricity costs by 30% vs old ACs. Inverter tech adjusts power output based on demand, avoiding energy waste.
• Wifi Enabled system works with phone app—check/control each zone’s temp, mode, or timer remotely. IFEEL-8Hours mode senses surrounding temp and adjusts automatically for personalized comfort. Auto-swing air deflector with position preset function, 24H timer, and Celsius/℉ toggle cater to daily habits. Mute Mode (≤38dB) keeps bedrooms/studies quiet, while display on/off avoids light disturbance at night.
• Comes with 16ft copper line set & full installation kit—pre-charged refrigerant (R-454B) cuts installation time by 50%. Fire-proved electrical box, refrigerant leakage detecting, and self-troubleshooting system reduce safety risks. Built-in water pump (up to 1200mm) efficiently drains condensation, preventing water damage. ODU chassis belt protects outdoor unit in freezing weather, extending service life.
