Battery Testers, KM50 Car Power Scan Electric Circuit Tester Automotive Tools Car Multi Meter Circuit Diagnostic Tool

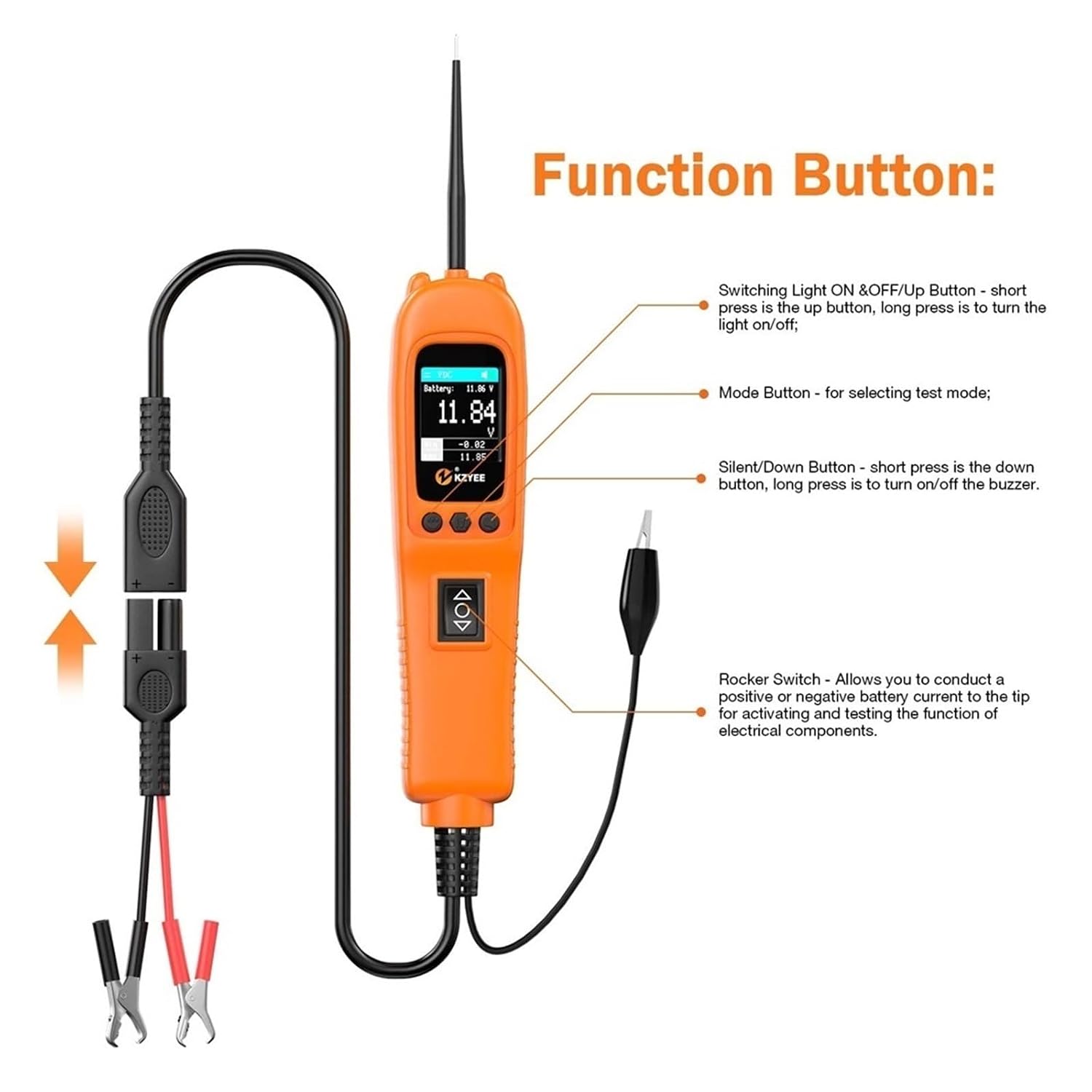

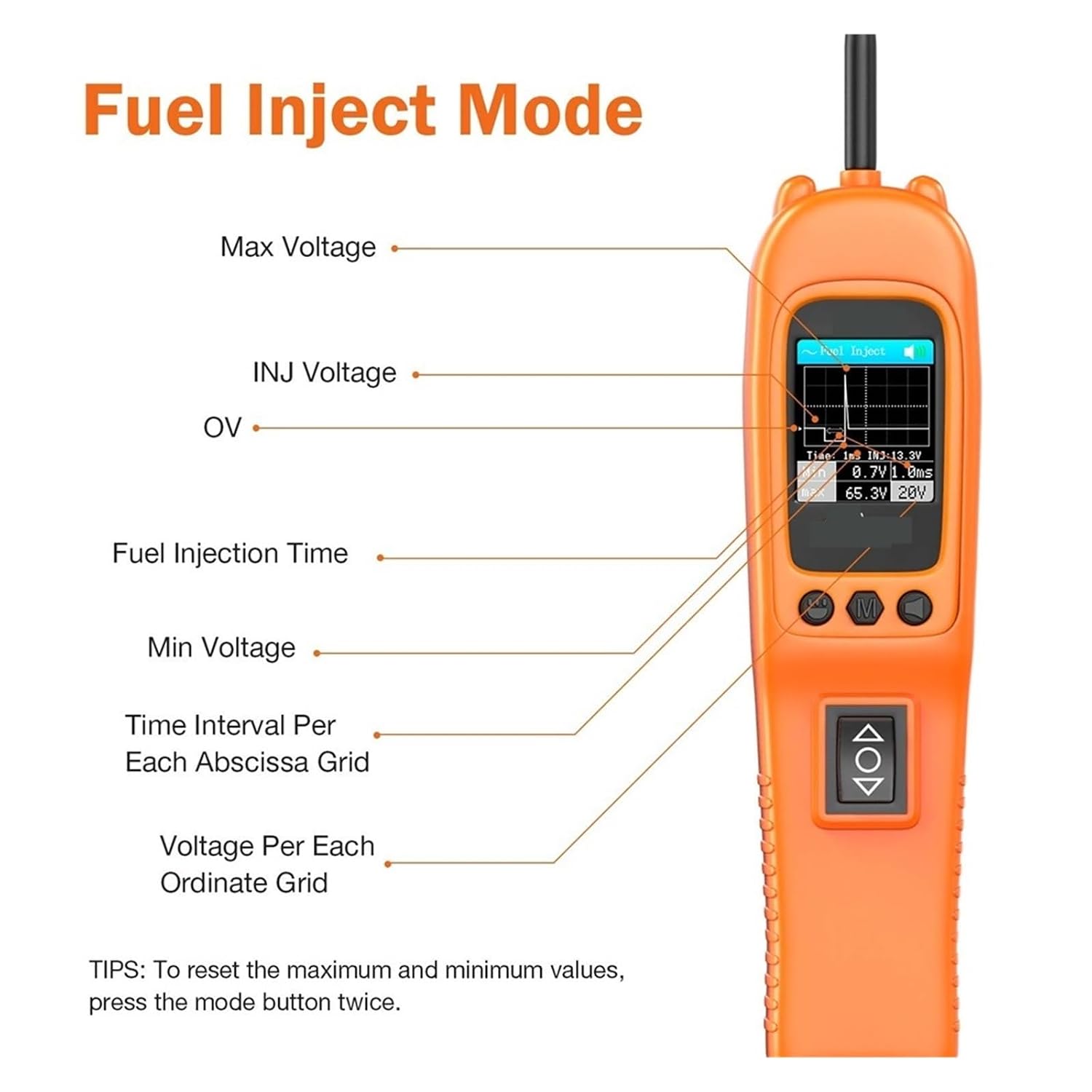

Accepts 12-24 volt power supply and provides DC voltage, AC voltage, frequency, duty cycle, injection circuit, resistance and diode detection.You can switch between waveform display mode and digital display mode by long pressing the mode button.With ultimate performance and economy, it allows users to check circuits in one step. An absolute must-have for any technician looking for a fast, accurate electrical system diagnostic solution.The LED and LCD draw no more than 100mA. So if you're using this device as a test light or multimeter, it's safe for computers and airbags.When opening components, you can extend the life of the rocker switch in your tool if you press the switch first and then touch the tip to the component.Function:Quickly and accurately diagnose 12~24V automotive electrical system.Immediately after the clip is connected to the vehicle battery, the battery voltage reading is displayed and helps the user determine circuit polarity.Test DC voltage, AC voltage, frequency, duty cycle, fuel injection circuits, resistors and diodes. Especially, in AC voltage, frequency, duty cycle and fuel injection mode, user can long press the mode button for 3 seconds to switch between waveform display mode and digital display mode.Activate the electrical components and test their functionality by depressing the rocker switch to conduct positive or negative battery current to the tip, thereby energizing the electrical components and testing their functionality, no jumpers required.Immediately tests bad ground contacts without performing a voltage drop test.Helps the user trace and locate short circuits without the use of external fuses.Test continuity with auxiliary ground wire.The tool is short circuit protected. If overloaded, its internal circuit breaker will trip to protect the instrument from overload.When the breaker is tripped, the tool cannot conduct battery current to the tip even with the roc

• Resistance Test: When the tool is in this mode, touch the probe tip to the circuit and the LCD display will read the resistance between the tip and the auxiliary ground lead.
• Diode Test: In this mode, touch the probe to the positive terminal of the diode, connect the auxiliary ground wire to the negative terminal of the diode, and the screen will display the forward voltage drop, indicating the forward bias. If the probe tip and auxiliary ground lead are swapped, the screen will show no voltage, indicating reverse bias.
• Signal Circuit Test: Once you extract from the vehicle and realize that the troubleshooting starts with some kind of sensor circuit, you can perform a quick test to verify the code. Sensors can be easily tested while using the tool.
• Test Trailer Lights and Connections: With the tool in DC voltage mode, clamp the auxiliary ground lead to the trailer ground, probe the contacts at the jack, and apply voltage to the probe tip. This allows you to check the function and orientation of the connectors and trailer lights.
• Red/Green Polarity LED: The Red/Green Polarity LED illuminates when the probe tip voltage matches the battery voltage within ±0.4 volts. It is additional information that may be of value to a technician.
