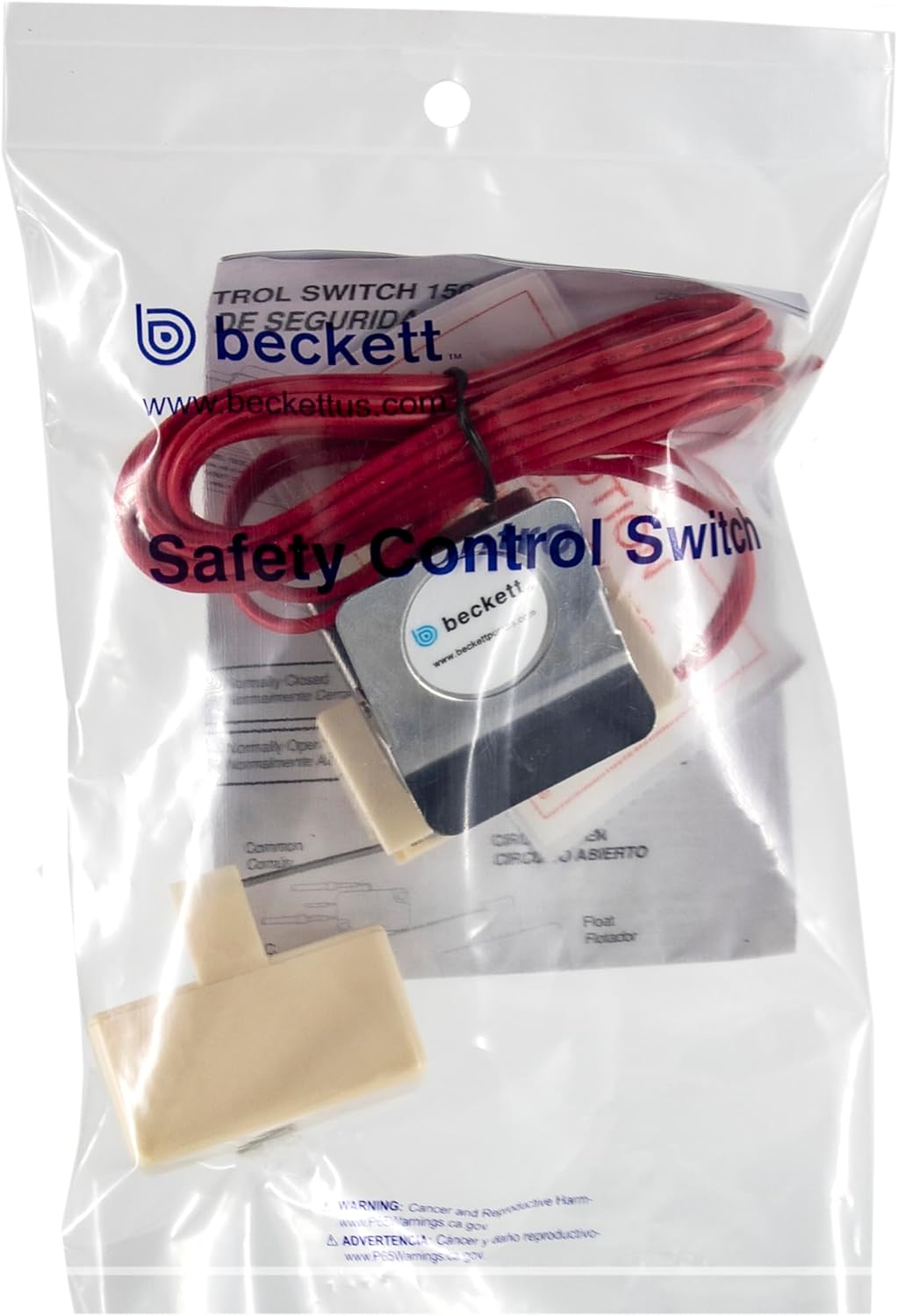

Beckett 1502C Drain Pan Safety Switch 125-250 VAC with SS Spring clamp
Product details
| Management number | 218082898 | Release Date | 2026/05/03 | List Price | US$9.89 | Model Number | 218082898 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

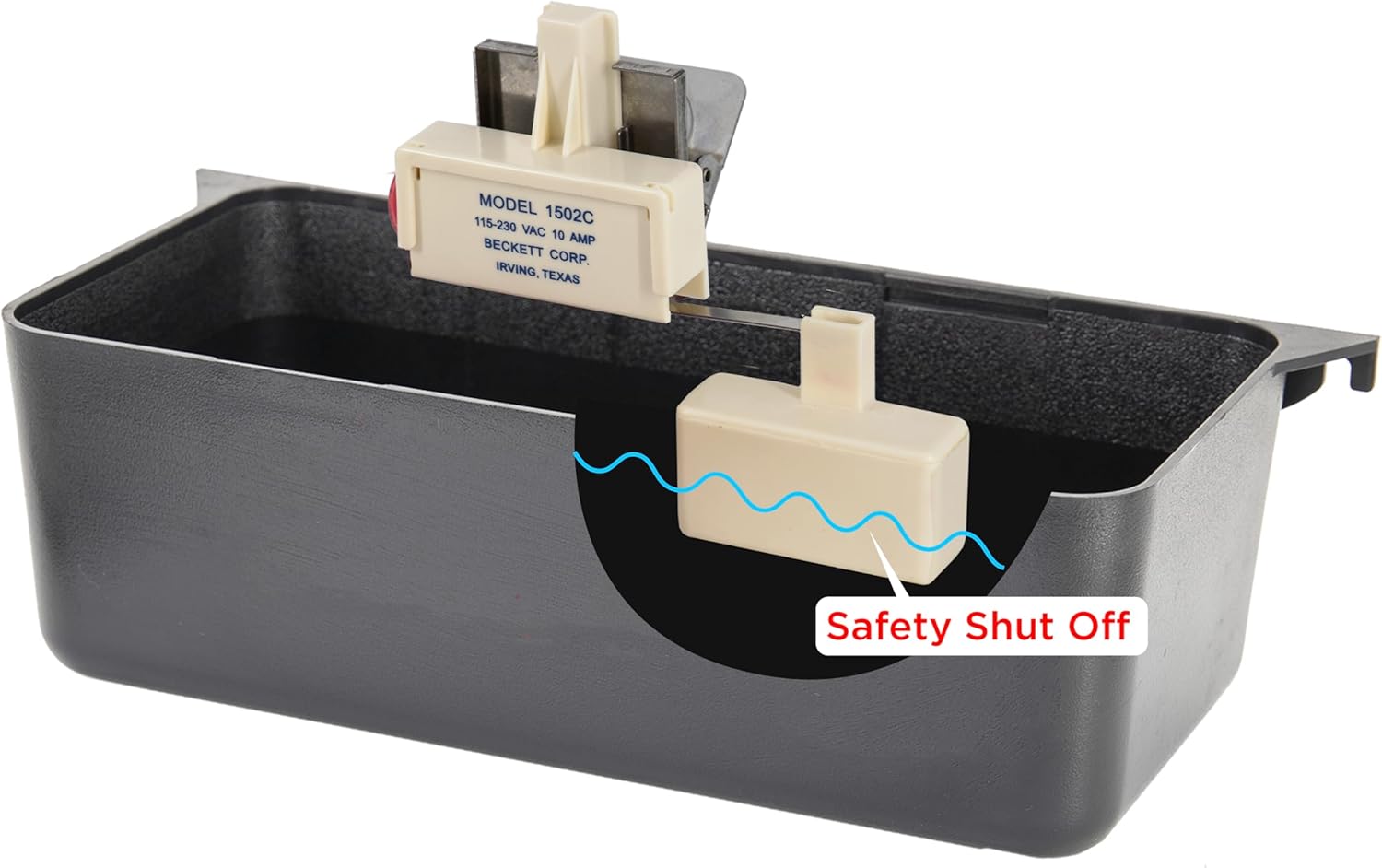

Beckett’s easy to use float actuated drain pan safety switch provides a reliable means to monitor high water levels. The switch may be wired directly to the system to turn off the air conditioner or furnace equipment, or it can be wired to sound an alarm if the water level becomes too high.
- 125-250 VAC, 10 Amp
- UR rated
- 72" Wire length
- Normally closed
- Single pole, double throw, single break snap action switches
| UPC | 052309411414 |
|---|---|
| Color | multi-colored |
| Model | 1502C |
| Terminal | Clamp |
| Brand Name | Beckett |
| Unit Count | 1.0 Count |
| Item Weight | 4.8 ounces |
| Part Number | 1502C |
| Switch Type | Float Switch |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Manufacturer | Beckett Corporation |
| Material Type | Plastic |
| Mounting Type | Surface Mount |
| Connector Type | Clamp |
| Control Method | Touch |
| Current Rating | 10 Amps |
| Item Type Name | Safety Overflow switch |
| Operation Mode | automatic |
| Item Dimensions | 6.25 x 0.82 x 0.51 inches |
| Number of Items | 1 |
| Contact Material | Metal |
| Operating Voltage | 125 Volts (AC) |
| Specification Met | ETL, UL |
| Included Components | SS Spring clamp |
| Number of Positions | 3 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP54 |
