ESP32 LoRa V4 Development Board +L76 GNSS Module +3000mAh Battery +Black Case, ESP32-S3 SX1262 LoRa WiFi Bluetooth 2MB PSRAM 16MB Flash 915MHz Antenna OLED Support GPS Solar for Meshtastic
Product details
| Management number | 228896660 | Release Date | 2026/05/31 | List Price | US$22.80 | Model Number | 228896660 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Integrated High-Performance GNSS + LoRa for Precision Tracking: Now featuring the advanced L76 GNSS module with multi-system support (GPS, GLONASS, QZSS, SBAS) and EASY/AlwaysLocate technologies for ultra-fast cold start (<15 sec) and low-power operation (~2.6mA). Combined with upgraded ESP32-S3R2 and SX1262 LoRa chip, this ESP32 development board delivers reliable real-time location data for asset tracking, smart agriculture, and outdoor IoT deployments—ideal for engineers and makers building GPS-enabled wireless sensor networks.
- Enhanced Processing Power & Memory for Complex Applications: Powered by ESP32-S3 with 2MB PSRAM and 16MB Flash, it handles complex firmware, UI rendering, and multitasking effortlessly. The high LoRa transmission power (28dBm) and sensitivity (-137dBm) ensure long-range communication, while seamless integration with the L76 GNSS enables precise geolocation logging—perfect for industrial monitoring, environmental sensing, or mobile LoRaWAN nodes.
- Full Expansion & Outdoor Readiness with Solar & GNSS Support: Expand functionality easily with dedicated SH1.25-8Pin GNSS interface and SH1.25-2P solar panel input (4.4-6V). Perfect for outdoor Meshtastic GPS trackers, solar-powered sensor networks, or off-grid environmental monitoring. Combine with a 915MHz LoRa antenna for maximum coverage.
- Long Battery Life + Smart Power Management with Solar Input: Optimized for low-power applications, sleep mode draws less than 20μA. Battery management features support lithium battery charging, overcharge protection, and seamless switching between USB and battery/solar power. Now equipped with a 3000mAh rechargeable lithium battery, enabling extended operation in portable or remote deployments such as wireless alarms, water meter reading, mobile LoRaWAN nodes, and off-grid sensing solutions—ideal for uninterrupted field use.
- Plug-and-Play Design: The ESP32 LoRa V4 features a 0.96” OLED display, USB Type-C with ESD protection, dual IP EX antennas (LoRa & 2.4GHz), and expanded header pins. Fully supports A rduino IDE, MicroPython, and ESP-IDF. A top-tier choice among ESP32 boards for makers, engineers, and Meshtastic users.

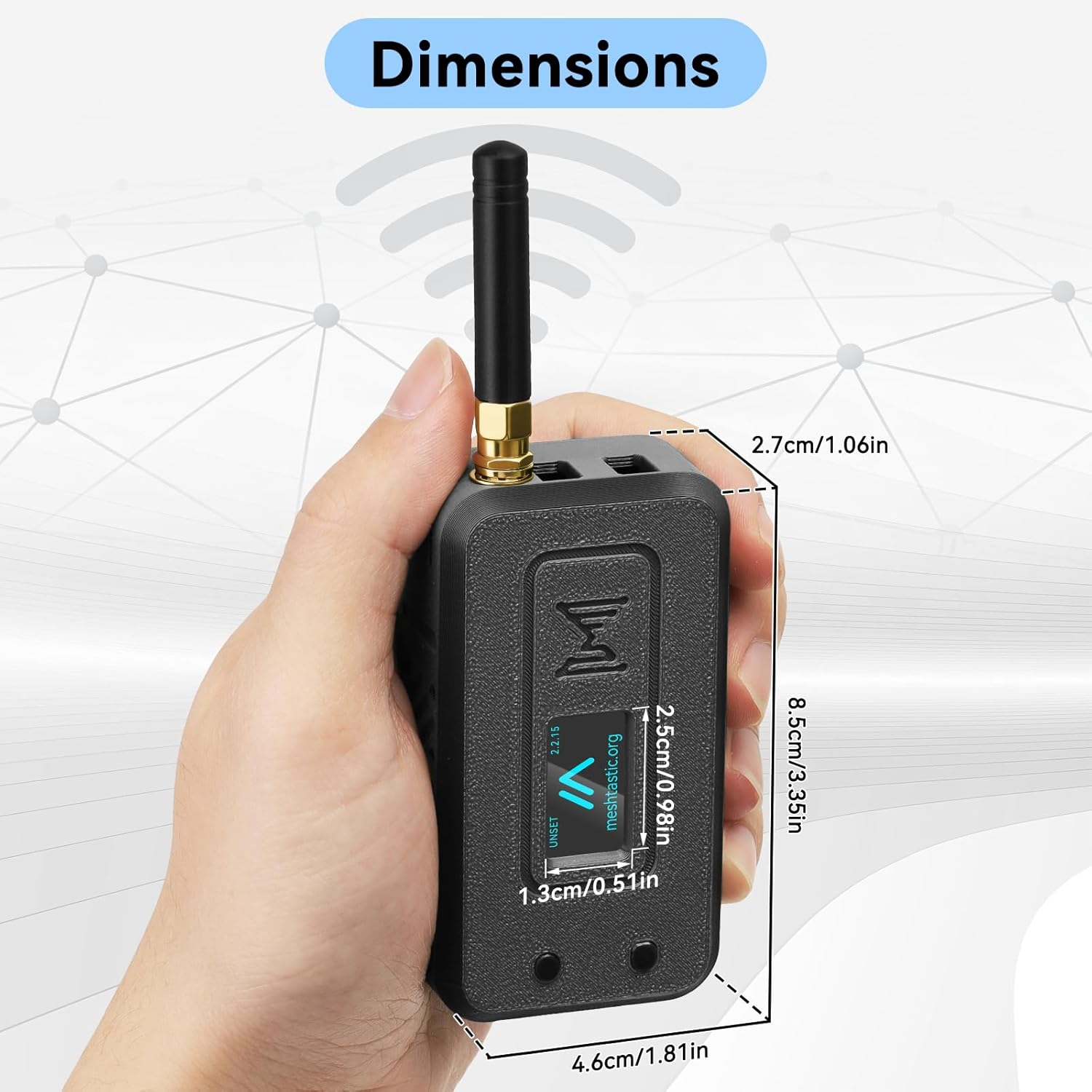

- Customised Enclosure for Enhanced Protection: The included N35F black shell is specifically designed to house your LoRa V4 ESP32 development board, battery, GNSS module, and antennas. With precise cutouts for the display, buttons, charging port, and antenna, along with ventilation holes, this case ensures a snug fit while offering robust protection. Durable and lightweight, it’s perfect for field deployments or DIY projects.
- Note: 1.The screw securing the upper left corner of the screen is a specially customized plastic screw, distinct from the other three screws. Its purpose is to avoid interfering with the 2.4GHz radio frequency and is not defective. 2.Flash the firmware first before use, otherwise the screen will be blank.
| ASIN | B0GQ327CLG |
|---|---|
| Brand | Meshnology |
| Manufacturer | Meshnology |
| BuiltIn Media | ESP32 LoRa V4 Development Board + L76 GNSS Module + 3000mAh Battery + N35F Black Case |
| Processor Brand | Espressif |
| Compatible Devices | Arduino IDE, MicroPython, ESP-IDF, Computers (PCs, laptops, tablets), Smartphones, Solar Panels, Antennas |
| RAM Memory Installed | 2 MB |
| Warranty Description | 1 |
| Wireless Compability | 802.11bgn |
| RAM Memory Technology | PSRAM |
| Connectivity Technology | Bluetooth, LoRa, Wi-Fi |
| Memory Storage Capacity | 16 MB |
| Smart Home Compatibility | Not Smart Home Compatible |
