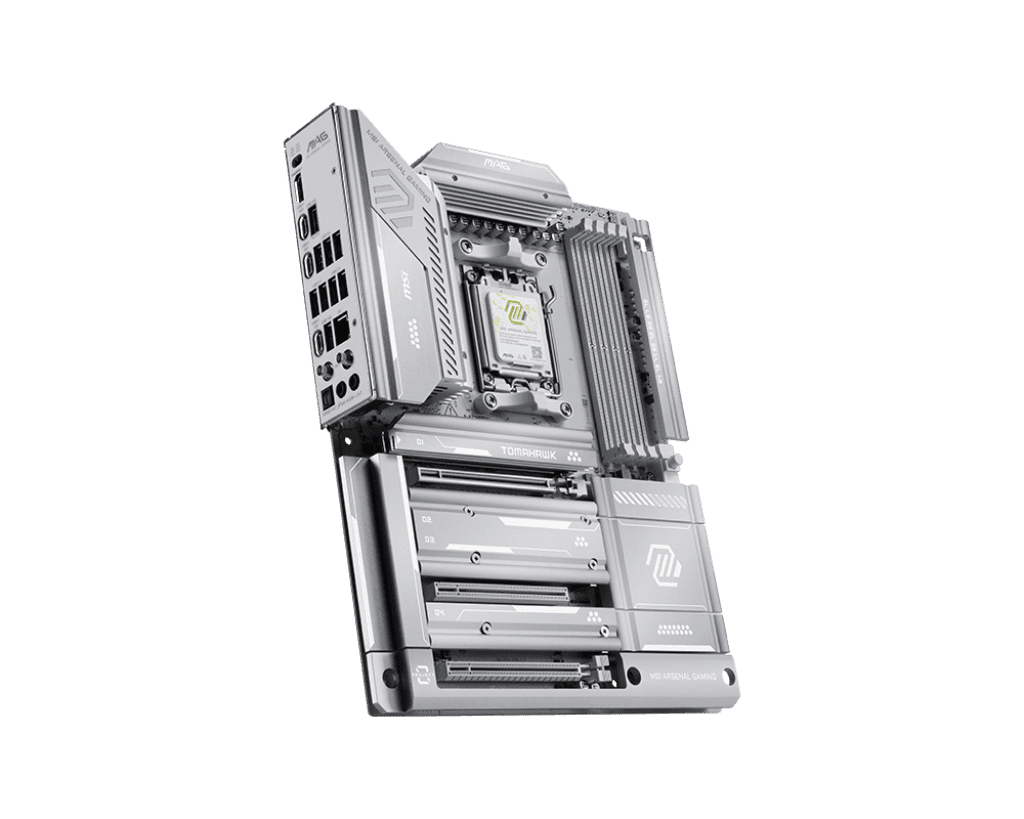

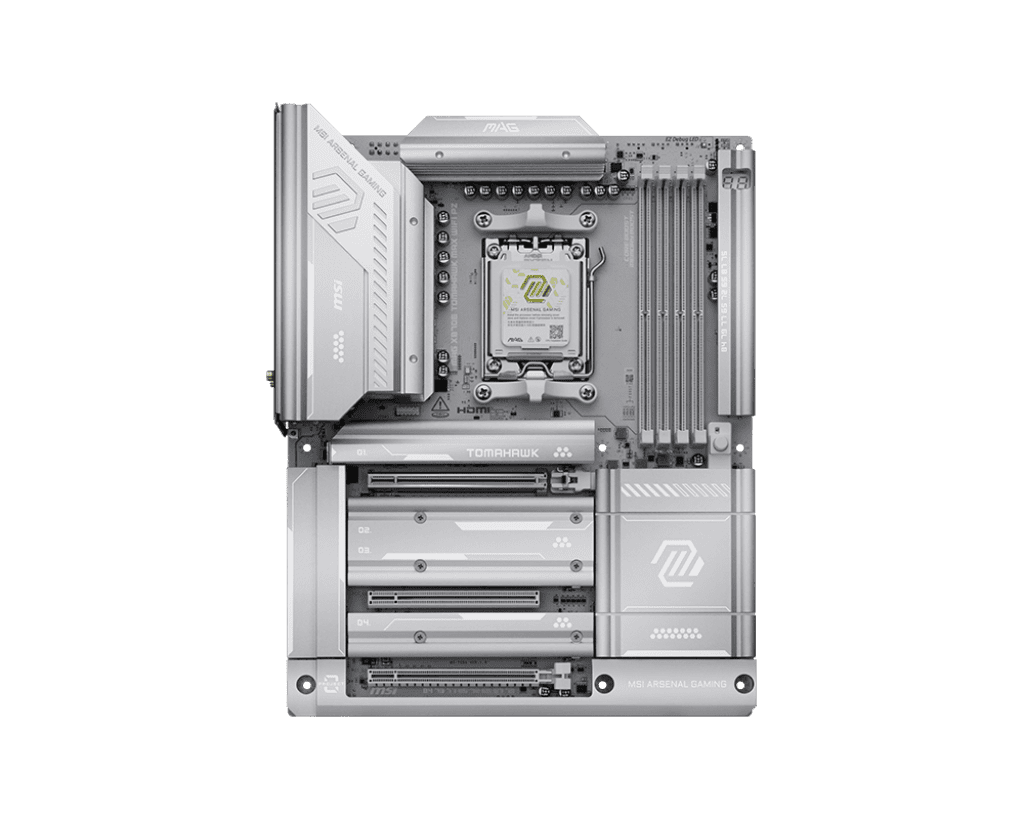

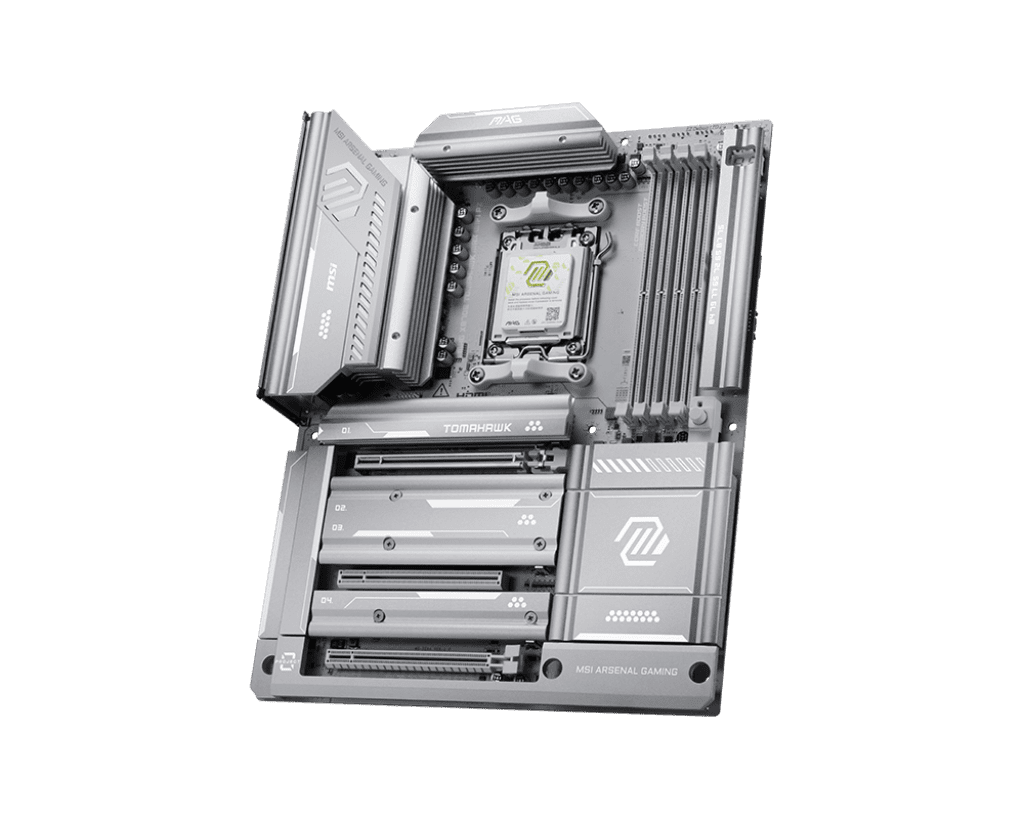

MSI MAG X870E TOMAHAWK MAX WIFI PZ AM5 AMD X870E PCIe 5.0 USB 40/20/10/5Gbps Type A/C Wi-Fi 7 ATX Back-Connect Motherboard
Product details
| Management number | 231083236 | Release Date | 2026/06/18 | List Price | US$116.00 | Model Number | 231083236 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
MSI MAG X870E TOMAHAWK MAX WIFI PZ back-connect motherboard is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen 9000 series processors.
- Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Back-connect Design: Features a back-connect design, which relocates the motherboard power, CPU power, fan pins, SATA, and other interfaces to the back of the motherboard. This allows for simpler cable management, while also providing a cleaner and more aesthetically pleasing appearance for the system.
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning-Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience
- Storage Support: 4 x M.2
- Slots: 3 x PCI-E x16 slots
- LAN: 1 x Realtek 8126 5G LAN
- WiFi & Bluetooth: Wi-Fi 7 and Bluetooth 5.4
- Internal I/Os: 1 x Power Connector(ATX_PWR), 2 x Power Connector(CPU_PWR), 1 x Power Connector(PCIE_PWR 8pin), 1 x CPU Fan, 1 x Combo Fan (Pump_Sys Fan), 6 x System Fan, 1 x EZ Conn-header (JAF_2), 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD), 3 x Addressable V2 RGB LED connector (JARGB_V2), 1 x RGB LED connector(JRGB), 1 x TPM pin header(Support TPM 2.0), 2 x Direct OC Jumper (JBCLK), 4 x USB 2.0 ports, 4 x USB 5Gbps Type A ports, 1 x USB 20Gbps Type C ports

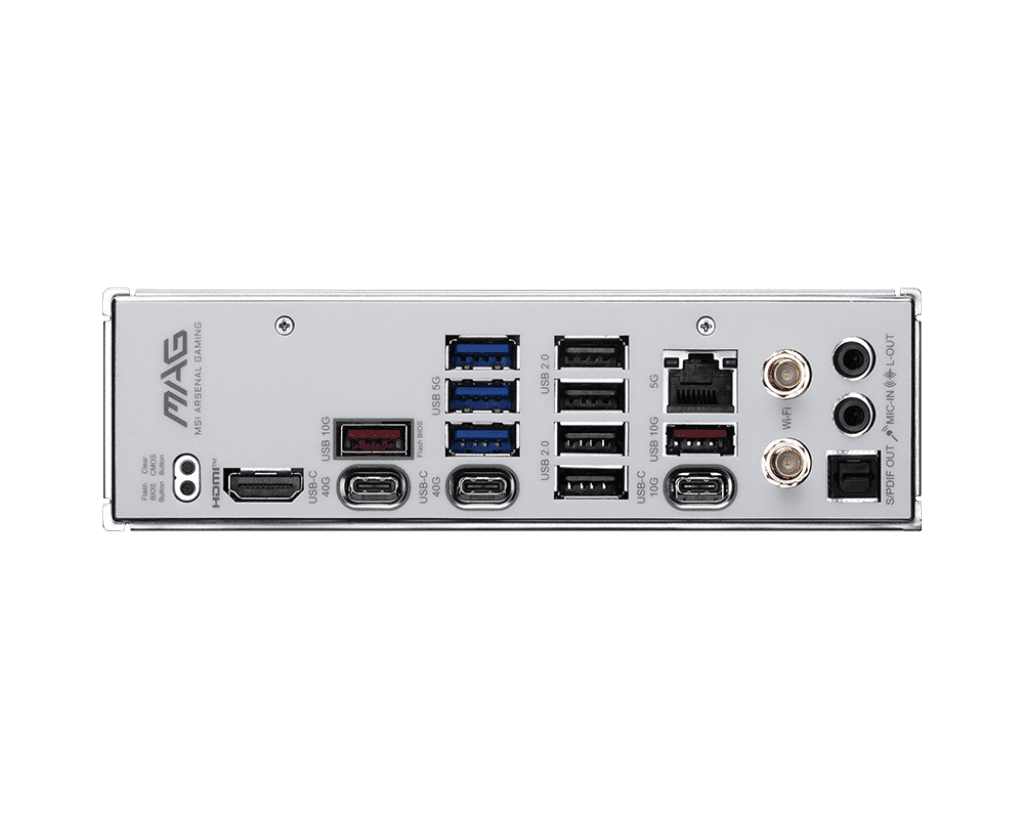

- Back-panel Ports: Clear CMOS Button, 1 x USB 10Gbps Type-A, 3 x USB 5Gbps Type-A, 4 x USB 2.0, 1 x 5G LAN, 2 x Antenna connectors for Wi-Fi / Bluetooth, 2 x Audio connectors, Flash BIOS Button, 1 x HDMI, 2 x USB 40Gbps Type-C, 1 x USB 10Gbps Type-C, 1 x USB 10Gbps Type-A, 1 x Optical S/PDIF Out
| Cpu socket type | AM5 |
|---|---|
| Motherboard form factor | ATX |
| Proc. brand | MSI |
| Max RAM | 256 GB |
| Inputs/Outputs | Outputs - USB 2.0, S/PDIF, HDMI, DisplayPort |
| Brand | MSI |
| In/Out type | Wireless |
| Number of ports | 12 |
| Input/output quantity | 1 |
| Model name | MAG X870E TOMAHAWK MAX WIFI PZ |
| Accessories | Quick Installation Guide; USB Drive; 2 x SATA Cables; EZ M.2 Clip II Remover; 3 x EZ M.2 Clip II; M.2 Plate Screw; Cable Stickers; EZ Wi-Fi Antenna; 1-to-3 EZ Conn-Cable (V2); EZ Front Panel Cable |
| Height | 12 in |
