Permanent Jewelry Welder kit, Pulse Argon Arc Welding Machine, Automatic Spot Welder, Weldable Solid Gold, Aluminum, Titanium Welding and Orthodontics ​for Jewelry Restoration, Hardware Workpiece

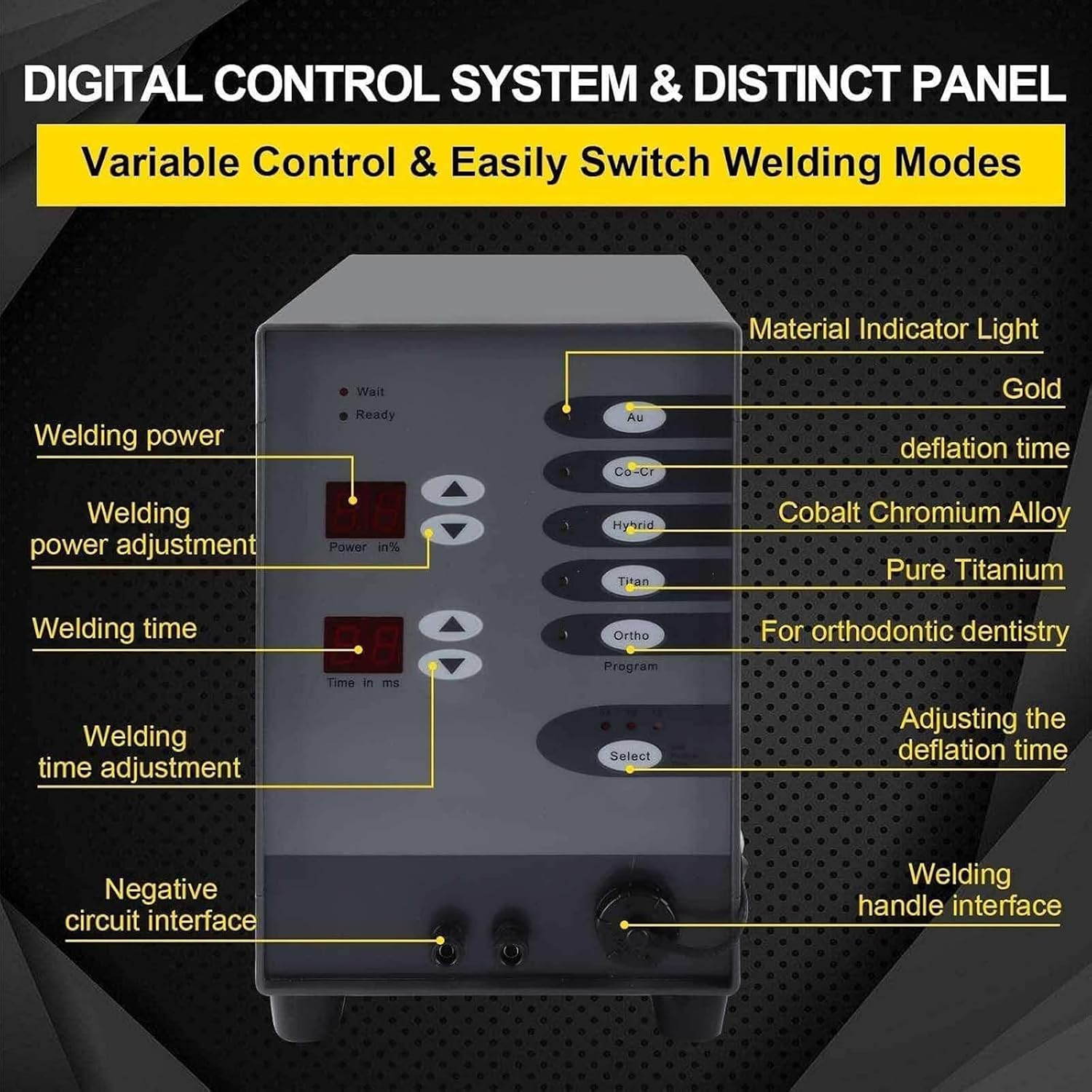

This unit is suitable for all types of dental soldering work, jewelry soldering work, for both new restorations and repairs. The application range is at least equivalent to a l-a-ser welding unit, and the cost of equipment and operations is much cheaper than a l-a-ser welding unit. 【Features】 - Argon-arc Spot Welders includes five basic preset programs for gold (Au), cobalt chrome (co-cr), hybrid welding (as precious to non-precious), titanium (Ti) and orthodontics. - In addition to its features compact size, safe and stable system, easy operation, low noise and maintenance. - It requires minimal working space, and the adjustable power and pulse settings allow adjustment of penetration depth and welding spot diameter. 【Specification】 Power supply: 220V/110V 50/60Hz Power consumption: 100W Protection grade: IP21 Gas supply pressure: ≥0.1Mpa Welding voltage: 40V Welding current: 5A600A Welding time: 3ms--30ms Max. welding frequency: 1Hz Max. argon consumption: 5L/min Dimensions: 280mm*160mm*230cm; Weight: about 8.5kg. 【Package List】 1 x automatic CNC spot welder 1 x pedestal + handle 1 x welding loop clamp 1 x spot welding brush grinder 1X pressure gauge 1X tweezers 1X trachea

• 【Note】The pulse welder welding diameter range is 0.5-1.3mm, beyond may not achieve good results or can not work (more operating notes please see the manual)
• 【Product Use】The working principle of the product is spot welding, when the workpiece touches the welding needle it will automatically shrink the rod. If you need to weld different diameters of workpieces, you need to adjust the welding time and welding power to achieve the best welding effect.
• 【Achieving Precise Control】This cordless spot welder enables more precise welding with fully calibrated controls. In addition to its features, small size, safe and stable system, easy operation, low noise and maintenance.
• 【Protect Workpiece】Minimum workspace is required, adjustable power and pulse settings allow customization of penetration depth and spot weld diameter. When there is no operation for 5 minutes, the unit will enter Ortho mode to avoid damage to workpieces.
• 【Scope of application】It is very suitable for welding jewelry and teeth. The device is suitable for all types of dental welding work, jewelry welding work, including new restorations and restorations.
